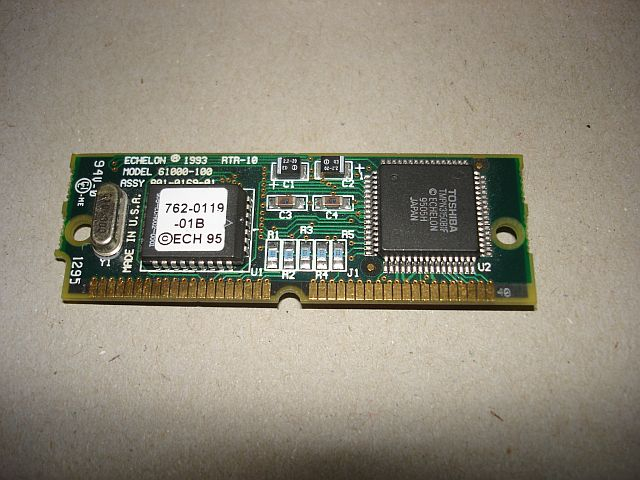

RTR-10 Router Core Module

The RTR-10 Router Core Module is a compact module used by OEMs to build routers. Routers connect two communications channels and route LonTalk messages between them.,They support installation of networks with dozens to thousands of nodes.

Transparent multi-channel and multi-media support
Compact single in-line module (SIM) form factor
Transceiver-independent design
Built-in transceiver parameters for standard transceiver types
Messages forwarded between two channels of the same or different media type or bit rate
Unlimited number of network variables forwarded
Default 10MHz operation with a 2 to 2,5ms router delay maximizes system performance of multi-channel networks
Status output indicates a forwarded packet
One side of the router can be driven by an external clock and connected to a transceiver running at any LONWORKS bit rate from 610bps to 1,25Mbps
Choice of four routing algorithms allows optimizing tradeoffs between ease of installation and network performance
Physical isolation between two channels improves system reliability by isolating failures between channels
